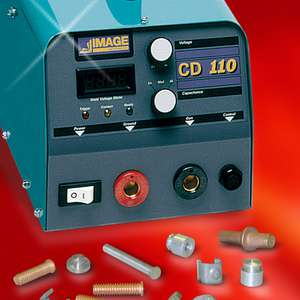

CD110 Capacitor Discharge Gap & Contact Power Source
This bench top model is a workhorse. It has some of the most advanced features in the industry. It offers selectable capacitance 66,000uf; 88,000uf; 110,000uf. This allows the user to finely tune the welder to any size stud on any application. The CD110 also supports both contact and gap welding modes meaning the broadest range of applications are covered. From the thinnest guage base materials to the most conductive alloys the CD110 has you covered.
Welding Processes: CD, Contact, Gap
Weight: 45 lbs / 20.412 kg
Stocked: Yes
Stocked: Yes
Documents
CD110 Capacitor Discharge (CD) Stud Welder Specification SheetCD110 Capacitor Discharge (CD) Stud Welder User Manual
CD110 Capacitor Discharge (CD) Stud Welder Exploded Diagram & Schematic
General Attributes
Weight
45
Dimensions
10.2" x 14.6" x 9.6"
Configuration
Bench Top
Input Voltage
115V / 230V
Maximum Voltage
180V
Maximum Weld Base
3/8" Carbon Steel
Power Source Type
CD
Special Feature 1
Can connect to either Gap or Contact Weld Guns
Special Feature 2
Offers Capacitor Bank selection to have 66,000uf; 88,000uf or 110,000uf
Special Feature 3
Can adjust voltage downward. Competitive units require a power cycle to turn down voltage
Special Feature 4
Has indicator LEDs to indicate Ready to weld; proper electrical circuit for welding; trigger indicator
Maximum Capacitance
110,000 mico farads
Weld Cable Connector
1/0 Camlok
Control Cable Connector
4 Pin Mini Screw Style
