Product Information

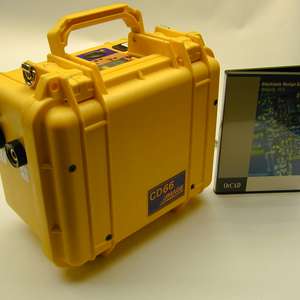

CD66 Capacitor Discharge Gap & Contact Power Source
The CD66 (Capacitor Discharge) Welder is designed for the convenience and comfort of the operator. With a stud capacity of up to 1/4″ steel and stainless steel, the unit is ideal for use in light industrial applications. Its portability on the job — enhanced by its adjustable shoulder strap — makes the CD66 a smart choice for insulation applications as well.
Welding Processes: CD, Contact, Gap
Weight: 10.500 lbs / 4.763 kg
Stocked: Yes
Stocked: Yes
Documents
CD66 Capacitor Discharge (CD) Stud Welder Specification SheetCD66 Capacitor Discharge (CD) Stud Welder User Manual
CD66 Capacitor Discharge (CD) Stud Welder Exploded Diagram & Schematic
General Attributes
Weight
10.5
Dimensions
10 5/8″ x 9 11/16″ x 6 7/8″
Configuration
Hand Held
Input Voltage
115V
Maximum Voltage
150V
Maximum Weld Base
1/4" Stainless Steel
Power Source Type
CD
Special Feature 1
Can connect to either Gap or Contact Weld Guns
Special Feature 2
Lightest CD welder in the world.
Special Feature 3
Can adjust voltage downward. Competitive units require a power cycle to turn down voltage
Special Feature 4
Has indicator LEDs to indicate Ready to weld; proper electrical circuit for welding; trigger indicator
Maximum Capacitance
66,000 mico farads
Weld Cable Connector
4ga Dinse
Control Cable Connector
4 Pin Mini Screw Style
