FTS12-30
Product Information

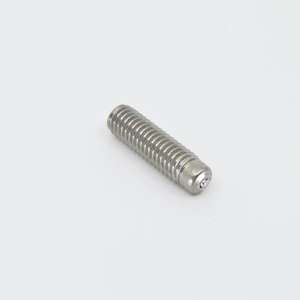

            M12-1.75 X 30mm Full Thread,  Stainless Steel,   Weld Stud

        Product
            FULL THREAD FTS METRIC THREADED STAINLESS STEEL
        Ferrule
            M12F
        Welding Process


                    Arc


        Material Spec

                302
                (US Density: 0.284 / Metric Density: 0.00787)

        Harmonization and Tariff Schedules

            HTS Code: 7318.15.20.61
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule


        Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Also Known As





                        921972754




                    Measure: Metric

Specialty: No
Internal Thread: No
External Thread: Yes
                Specialty: No
Internal Thread: No
External Thread: Yes
                    Non-Flanged: No

Mini-Flanged: No
Annealed: No
Nickel-Plate: No
            Mini-Flanged: No
Annealed: No
Nickel-Plate: No
General Fastener Attributes
Thread Size
                    M12-1.75
                Pitch
                    1.75

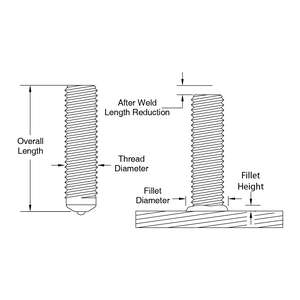

                Weld Base Diameter
                    10.8
                Overall Length
                    30mm
                Overall Length (Decimal)
                    30
                Base Height
                    6.0mm
                Base Height (Decimal)
                    6
                Flash Diameter
                    15.5
                Flash Height
                    4.5
                Flash Clearance
                    17.5
                After Weld Length Reduction (approx.)
                    3.0
                Weight


            Grade
            Qty/Box
            Finish
            In Stock
        21.85 Kg/1,000

                N/A


                N/A

            Plain


                    Please Call
