HAS25-268
Product Information
1/4 X 2-11/16 Headed Anchor, Stainless Steel, Weld Stud
Product
HEADED ANCHOR HA INCH NO THREAD STAINLESS STEEL
Ferrule
25F
Welding Process
Arc
Material Spec
302
(US Density: 0.284 / Metric Density: 0.00787)
Harmonization and Tariff Schedules
HTS Code: 7318.15.91.00
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: C
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: C
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Also Known As
CA04-043-12,
921972885
Measure: Inch
Specialty: No
Internal Thread: No
External Thread: No
Specialty: No
Internal Thread: No
External Thread: No
Non-Flanged: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No
General Fastener Attributes

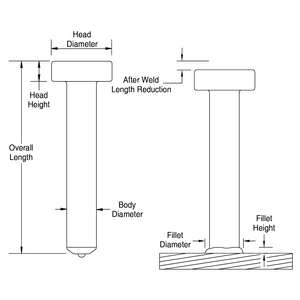

Body Diameter
1/4
Body Diameter (Decimal)
0.25
Overall Length
2-11/16
Overall Length (Decimal)
2.6875
Boxes per Pallet
27
Pieces per Pallet
27000
Box Weight
45 lbs
Pallet Weight
1,215 lbs
Head Diameter
0.5
Head Thickness (min)
0.1875
Flash Diameter
0.36
Flash Height
0.12
Flash Clearance
0.437
After Weld Length Reduction (approx.)
0.125
Weight
Grade
Qty/Box
Finish
In Stock
43 lbs/1000
N/A
1,000
Plain
Please Call
