SC75-218
Product Information

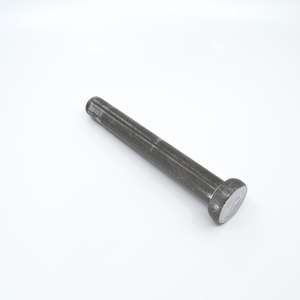

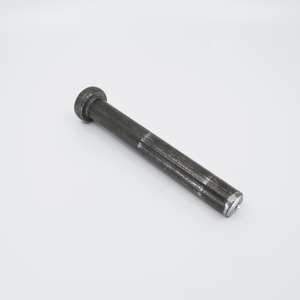

3/4 X 2-3/16 Shear Connector, Carbon Steel, Weld Stud
Product
SHEAR CONNECTOR SC INCH NO THREAD CARBON STEEL
Ferrule
75F
Welding Process
Arc
Material
Material Spec
C1015
(US Density: 0.284 / Metric Density: 0.00787)
Harmonization and Tariff Schedules
HTS Code: 7318.15.30.00
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: C
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: C
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Also Known As
101-098-078,
101098078,
SC12-035-11,
SC342,
921973027
Measure: Inch
Specialty: No
Internal Thread: No
External Thread: No
Specialty: No
Internal Thread: No
External Thread: No
Non-Flanged: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No

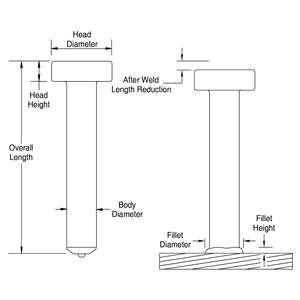

General Fastener Attributes
Body Diameter
3/4
Body Diameter (Decimal)
0.75
Overall Length
2-3/16
Overall Length (Decimal)
2.187
Boxes per Pallet
48
Pieces per Pallet
6000
Box Weight
53 lbs
Pallet Weight
2,545 lbs
Head Diameter
1.25
Head Thickness (min)
0.375
Flash Diameter
0.95
Flash Height
0.32
Flash Clearance
1.03
After Weld Length Reduction (approx.)
0.19
Weight
Grade
Qty/Box
Finish
In Stock
353 lbs/1000
N/A
150
Plain
Please Call
