SBS501-3750

Contact Us

Let's Build Bonds

Product Information

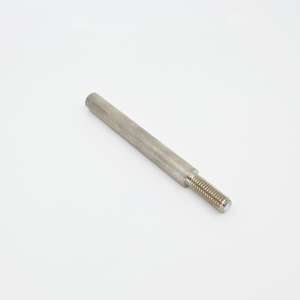

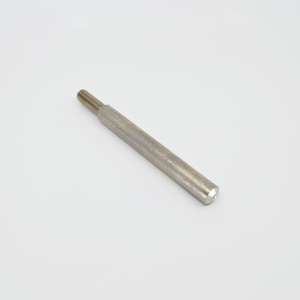

1/2 X 1 Base with 3/8-16 X 1/2 Extension Stainless Steel, Shoulder Base Weld Stud
Product
SHOULDER BASE SB INCH THREADED STAINLESS STEEL
Ferrule
50F
Welding Process
Arc
Material Spec
302 (US Density: 0.284 / Metric Density: 0.00787)
Harmonization and Tariff Schedules
HTS Code: 7318.15.20.61
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Also Known As
921974538
Measure: Inch
Specialty: Yes
Internal Thread: No
External Thread: Yes
Non-Flanged: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No

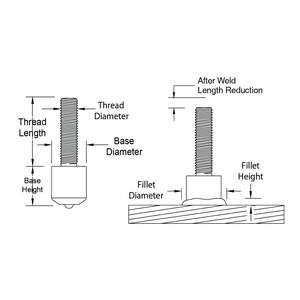

General Fastener Attributes

Base Diameter
1/2
Base Diameter (Decimal)
0.5
Base Height
1
Base Height (Decimal)
1
Thread Length
1/2
Thread Length (Decimal)
0.5
Overall Length
1-1/2
Overall Length (Decimal)
1.5
Thread Size
3/8-16
Pitch
16.0
Flash Diameter ±.02
0.630
Flash Height ±.02
0.17
Flash Clearance
0.680
After Length Weld Reduction (approx.)
0.125
Weight
Grade
Qty/Box
Finish
In Stock
71 Lbs/1,000
N/A
N/A
Plain
In Stock
