TPS621-2575
Product Information

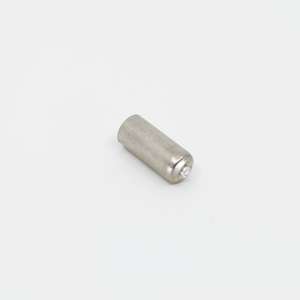

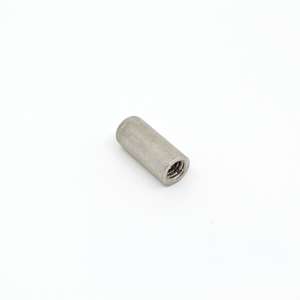

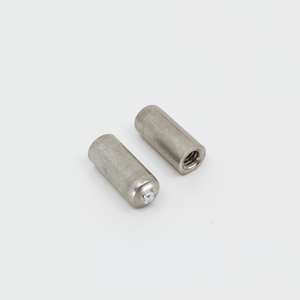

5/8 X 1 Tapped 1/4-20 X 3/4 Stainless Steel, Tapped Boss, Weld Stud
Product
TAPPED PAD TPC INCH NO THREAD STAINLESS STEEL
Ferrule
62F
Welding Process
Arc
Material Spec
302
(US Density: 0.284 / Metric Density: 0.00787)
Harmonization and Tariff Schedules
HTS Code: 7318.15.20.61
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Also Known As
921970735
Measure: Inch
Specialty: Yes
Internal Thread: Yes
External Thread: No
Specialty: Yes
Internal Thread: Yes
External Thread: No
Non-Flanged: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No

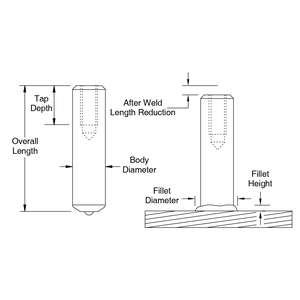

General Fastener Attributes
Body Diameter
5/8
Body Diameter (Decimal)
0.625
Overall Length
1
Overall Length (Decimal)
1
Tap Depth (Fractional)
3/4
Tap Depth (Decimal)
0.75
Tap Thread Size and Pitch
1/4-20
Tap Pitch
20
Flash Diameter
0.77
Flash Height
0.187
Flash Clearance
0.84
After Weld Length Reduction (approx.)
0.19
Weight
Grade
Qty/Box
Finish
In Stock
77 Lbs/1,000
N/A
N/A
Plain
Please Call
