CLC33112-3775
Product Information

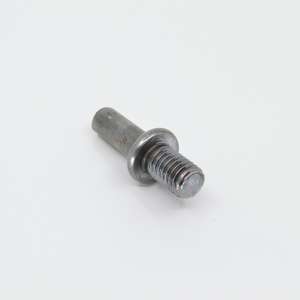

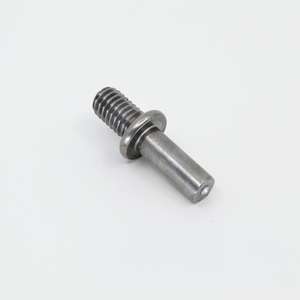

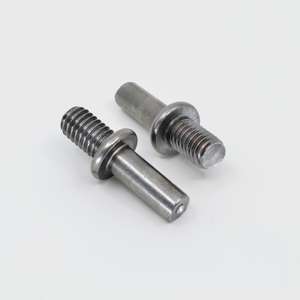

0.330 X 1-1/8 with 3/8-16 X 3/4 Extension, Carbon Steel, Collar Weld Stud
Product
COLLAR STUD CLC INCH THREADED CARBON STEEL
Ferrule
37C
Welding Process
Arc
Material Spec
C1010
(US Density: 0.284 / Metric Density: 0.00787)
Harmonization and Tariff Schedules
HTS Code: 7318.15.20.65
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Also Known As
11110701
Measure: Inch
Specialty: No
Internal Thread: No
External Thread: Yes
Specialty: No
Internal Thread: No
External Thread: Yes
Non-Flanged: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No

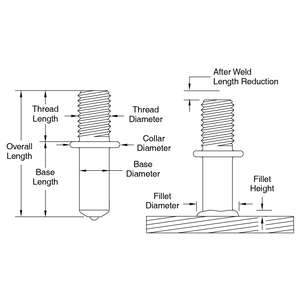

General Fastener Attributes
Thread Size
3/8-16
Thread Pitch
16
Weld Base Diameter
0.33
Collar Diameter
0.625
Base Length
1-1/8
Base Length (Decimal)
1.125
Thread Length
3/4
Thread Length (Decimal)
0.75
Overall Length
1.875
Collar Thickness
0.125
Flash Diameter
0.43
Flash Height
0.13
Flash Clearance
0.53
After Weld Length Reduction (approx.)
0.125
Weight
Grade
Qty/Box
Finish
In Stock
53.40 lbs/1000
2
N/A
Plain
Please Call
