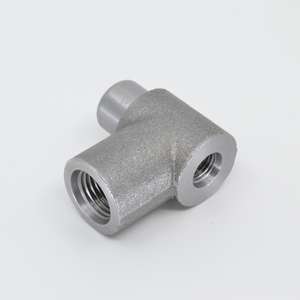

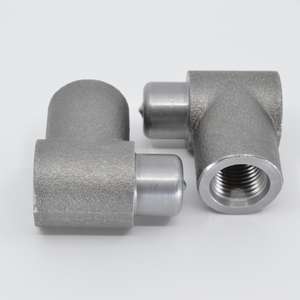

HRC8R108-626
Product Information
Dash 8 90° O-Ring Boss; 5/8 Weld Base; 1.08 Port Center Line
Product
HYDRAULIC PORT HRC INCH RIGHT ANGLE CARBON STEEL
Ferrule
62HP-325
Welding Process
Arc
Material Spec
C1010
(US Density: 0.284 / Metric Density: 0.00787)
Harmonization and Tariff Schedules
HTS Code: 7307.91.30
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
Also Known As
Measure: Inch
Specialty: Yes
Internal Thread: No
External Thread: No
Specialty: Yes
Internal Thread: No
External Thread: No
Non-Flanged: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No
General Fastener Attributes
Seal Style
O-Ring Boss
Hose / Tube Connection Size
Dash 8
Hose / Tube Connection Thread Size
3/4-16
Port Standaard
SAE J1926/1
Plug Port Dash Size
Dash 6
Plug Port Thread Size
9/16-18
Plug Port Standard
SAE J1926/1
Height To Port Centerline
1.08
Overall Height (Decimal)
1.568
Weld Base Diameter (Decimal)
0.625
Body Diameter
0.875
Recommended Minimum Tube Wall Thickness
0.187
Port Plug
PPC-6
Flash Diameter
0.75
Flash Height
0.355
After Weld Length Reduction (approx.)
0.125
Weight
Grade
Qty/Box
Finish
In Stock
0.248 Lbs each
N/A
N/A
Please Call
