TPC1215-88
Product Information

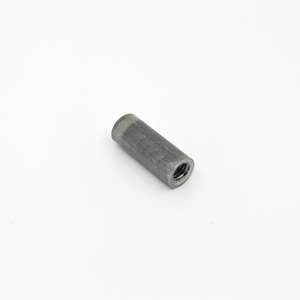

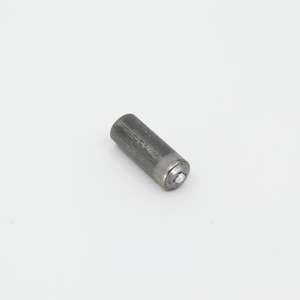

12 X 127mm Tapped M8-1.25 X 16mm Carbon Steel, Tapped Boss, Weld Stud
Product
TAPPED PAD TPC METRIC NO THREAD CARBON STEEL
Ferrule
M12F
Welding Process
Arc
Material Spec
C1010
(US Density: 0.284 / Metric Density: 0.00787)
Harmonization and Tariff Schedules
HTS Code: 7318.15.20.65
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Country of Origin: USA
Qualification Method: TS (Tariff Shift)
Origin Criteria: B
HTS Comment: Comes with Ferrule but Stud is primary so no HTS required for the Ferrule
Also Known As
921973492
Measure: Metric
Specialty: Yes
Internal Thread: Yes
External Thread: No
Specialty: Yes
Internal Thread: Yes
External Thread: No
Non-Flanged: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No
Mini-Flanged: No
Annealed: No
Nickel-Plate: No

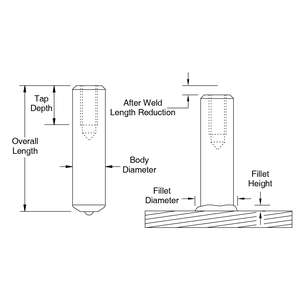

General Fastener Attributes
Body Diameter
12mm
Body Diameter (Decimal)
12
Overall Length
127mm
Overall Length (Decimal)
127
Tap Depth (Fractional)
16mm
Tap Depth (Decimal)
16
Tap Thread Size and Pitch
M8-1.25
Tap Pitch
1.25
Flash Diameter
15.5
Flash Height
4.5
Flash Clearance
17.5
After Weld Length Reduction (approx.)
3.0
Weight
Grade
Qty/Box
Finish
In Stock
108 Kgs/1,000
2
N/A
Plain
Please Call
